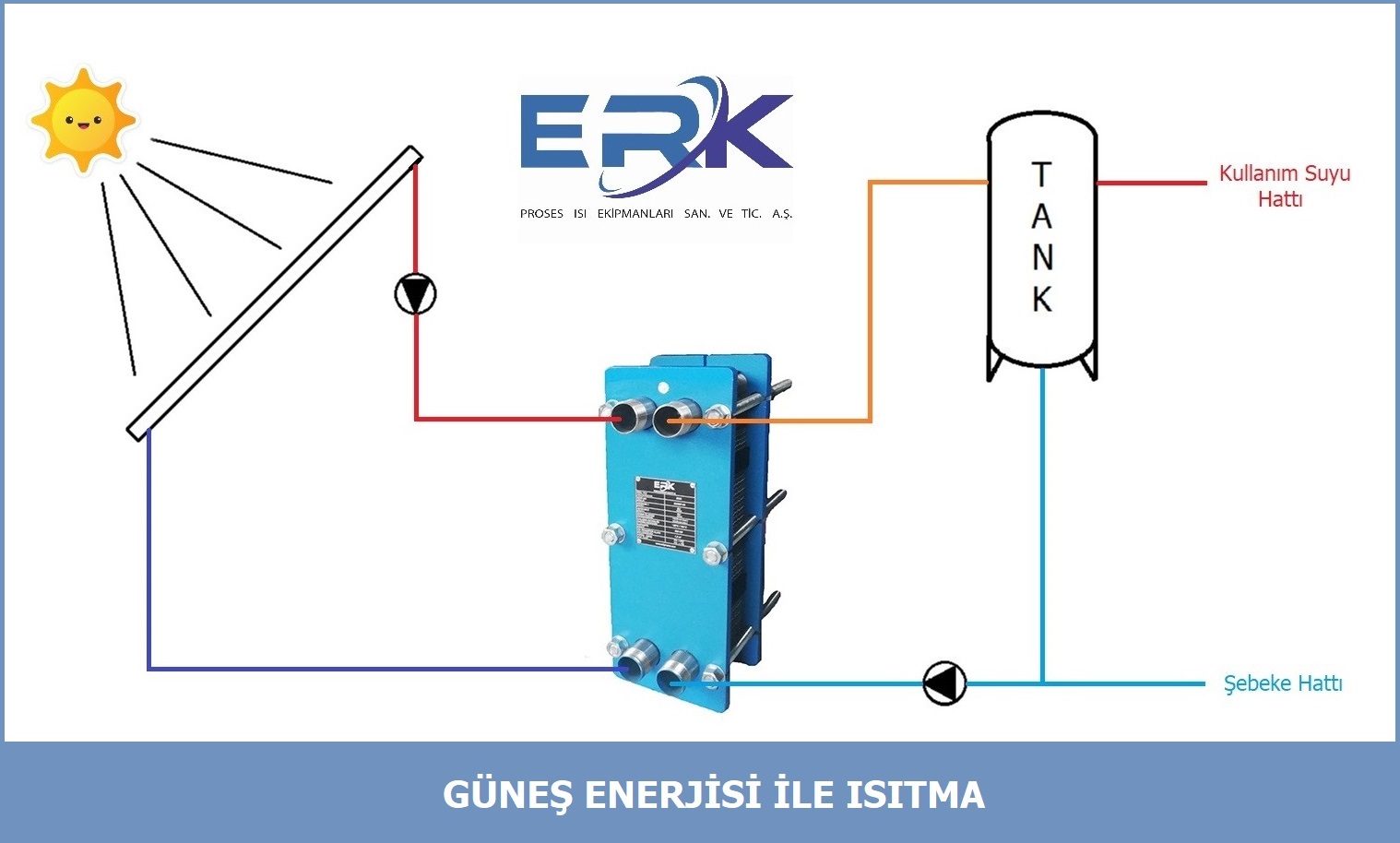

A solar energy heat exchanger converts the hot water generated by solar energy panels into hot water used in residential or commercial heating systems.

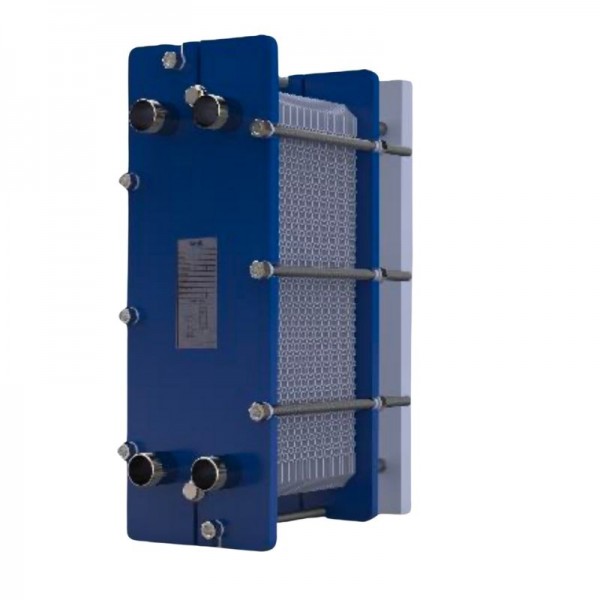

A solar energy heat exchanger is a heat exchanger used in solar energy systems. A solar energy heat exchanger converts the hot water generated by solar energy panels into hot water used in residential or commercial heating systems.
By means of stainless-steel plates suitable for domestic water use, hot water supply is acquired. A solar energy heat exchanger separates the hot water coming from the solar energy panels from the hot water used in residential or commercial heating systems, while maintaining its temperature.
Thus, it becomes possible to convert the hot water generated by solar energy panels into usable hot water for houses or workplaces.
You can select the appropriate heat exchanger from the list below and create a request:
Capacity | Model | Number of Plate | Pressure Category | Plate Material | Gasket Material | Price |
10.000 - 20.000 kcal/h | ERK-340ss | 15 | PN10 | AISI316 | EPDM | |
20.000 - 50.000 kcal/h | ERK-340ss | 30 | PN10 | AISI316 | EPDM | |
50.000 - 75.000 kcal/h | ERK-340ss | 43 | PN10 | AISI316 | EPDM | |
75.000 - 100.000 kcal/h | ERK-340ss | 46 | PN10 | AISI316 | EPDM | |
100.000 - 150.000 kcal/h | ERK-590ss | 34 | PN10 | AISI316 | EPDM | |
150.000 - 200.000 kcal/h | ERK-590ss | 31 | PN10 | AISI316 | EPDM | |
200.000 - 300.000 kcal/h | ERK-590ss | 45 | PN10 | AISI316 | EPDM | |
300.000 - 450.000 kcal/h | ERK-610ss | 39 | PN10 | AISI316 | EPDM | |
450.000 - 600.000 kcal/h | ERK-610ss | 51 | PN10 | AISI316 | EPDM | |
600.000 - 800.000 kcal/h | ERK-610ss | 71 | PN10 | AISI316 | EPDM | |
800.000 - 1.000.000 kcal/h | ERK-720ss | 51 | PN10 | AISI316 | EPDM |
For more detailed information about solar energy heat exchanger or to request a quote, you can contact us via the WhatsApp support line, our contact numbers, or by the quote request form available on our website.
