A pool water heat exchanger operates by transferring the energy from a hot water source used for heating pool water to the cold water in the pool.
A pool water heat exchanger is a device used to heat the water in a swimming pool. A pool water heat exchanger operates by transferring the energy from a hot water source used for heating pool water to the cold water in the pool.

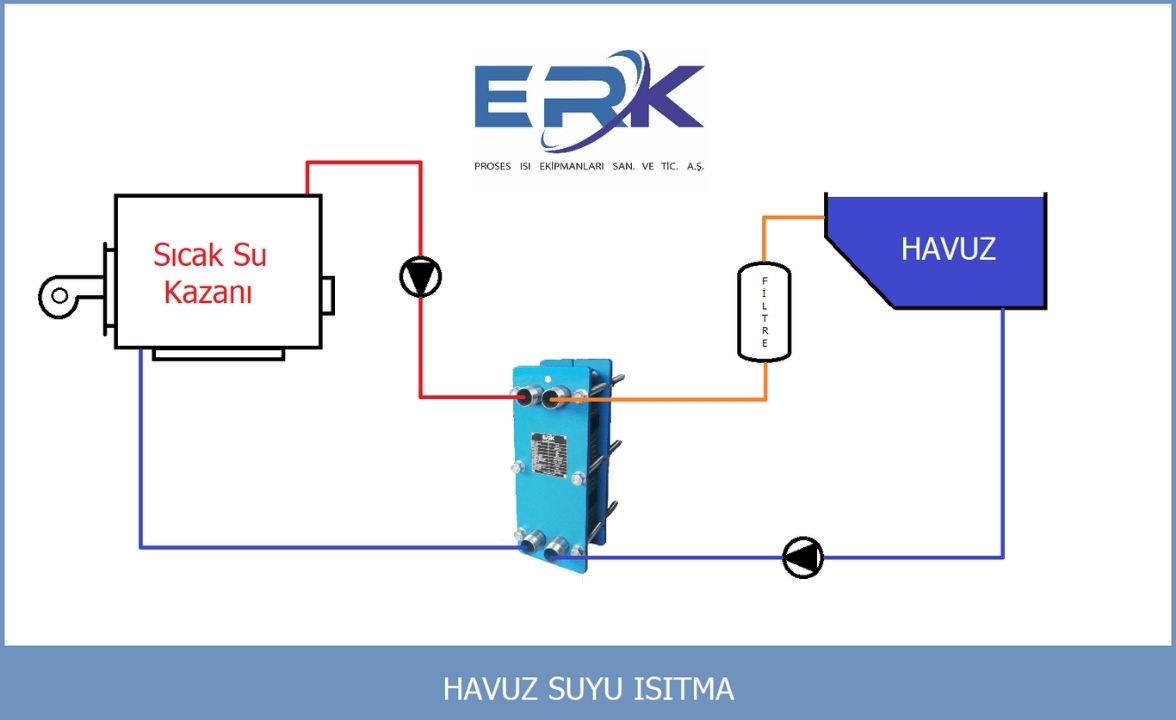

A pool water heat exchanger consists of two separate water circuits. In the first circuit, cold water from the pool circulates, while in the other circuit, hot water from the heat source circulates. These two circuits transfer the energy of hot water to cold water without mixing with each other through a heat exchanger.
As a result, the temperature of the pool water increases, providing a more comfortable temperature for the pool water.
You can select the appropriate heat exchanger from the list below and create a request:
| Capacity | Model | Number of Plate | Pressure Category | Plate Material | Gasket Material | Price |
| 20.000 kcal/h | ERK-340ss | 25 | PN10 | AISI316 | EPDM | |
| 50.000 kcal/h | ERK-340ss | 35 | PN10 | AISI316 | EPDM | |
| 75.000 kcal/h | ERK-340ss | 45 | PN10 | AISI316 | EPDM | |
| 100.000 kcal/h | ERK-340ss | 60 | PN10 | AISI316 | EPDM | |
| 200.000 kcal/h | ERK-590ss | 45 | PN10 | AISI316 | EPDM | |
| 300.000 kcal/h | ERK-610ss | 35 | PN10 | AISI316 | EPDM | |
| 400.000 kcal/h | ERK-610ss | 45 | PN10 | AISI316 | EPDM | |
| 500.000 kcal/h | ERK-610ss | 55 | PN10 | AISI316 | EPDM | |
| 600.000 kcal/h | ERK-610ss | 65 | PN10 | AISI316 | EPDM | |
| 700.000 kcal/h | ERK-610ss | 75 | PN10 | AISI316 | EPDM | |
| 800.000 kcal/h | ERK-610ss | 85 | PN10 | AISI316 | EPDM | |
| 900.000 kcal/h | ERK-720ss | 60 | PN10 | AISI316 | EPDM | |
| 1.000.000 kcal/h | ERK-720ss | 65 | PN10 | AISI316 | EPDM |
Note: Operation is provided according to a period of 24-hour regime. The heat source temperature regime for the exchanger is 80/60˚C, while the pool water temperature regime is 10/28˚C. For shorter regime durations and the design of an appropriate heat exchanger based on specific temperature conditions, please contact ERK Proses.
For more detailed information about a pool water heat exchanger or to request a quote, you can contact us via the WhatsApp support line, our contact numbers, or by the quote request form available on our website.
